p/n: TPGC040078 type: HGR-SQ-040-FL-R-M-S Goudsmit Magnetics

Prices p/n: TPGC040078 type: HGR-SQ-040-FL-R-M-S Goudsmit Magnetics Turkey

BRAND	Goudsmit Magnetics
Product	p/n: TPGC040078 type: HGR-SQ-040-FL-R-M-S
Description	magnetic grippers
Internal code	OZH4199694
Custom code	85051100

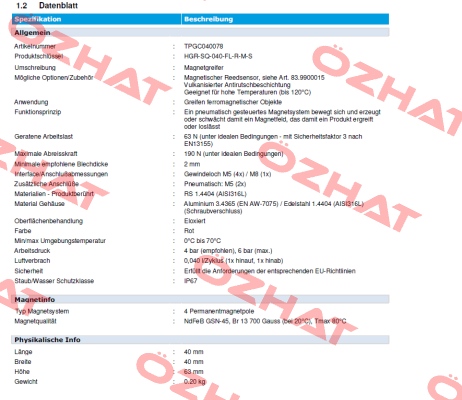

Technical specification	pneumatically switched Product description: magnetic gripper Type: Base Circuit: Pneumatic: 2 compressed air connections or: Circuit: 1 vacuum connection: see 'Gripper connection for vacuum control' (Downloads tab) Rated workload: 77 N (under ideal conditions - with safety factor 3 according to EN 13155) Maximum tear-off force: 230 N (under ideal conditions - graph: see tab Downloads - Influencing factors for lifting capacity: see About magnetic handling and lifting) Minimum recommended sheet thickness: 2 mm Interface/connection dimensions: M5 threaded hole (4x) Interface/connection dimensions: M8 threaded hole Connections: Pneumatic: M5 (2x) Housing material: aluminum Case material: AISI316L (stainless steel 1.4404) (screw cap) Surface treatment/coating: Anodized Color: red Min./max. ambient temperature: 0 to 70 °C Switching pressure: 4 bar (recommended), 6 bar (max.) Switching pressure: vacuum pressure -0.3 bar (switch on) Air consumption: 0.160 l/cycle (1x up, 1x down) Magnetic system: 4 permanent magnet poles Magnet quality: neodymium GSN-45, Br 13 700 gauss (at 20 °C), Tmax. 80 °C Depth: 40 mm Width: 40 mm height: 63 mm

You can find the current prices belongs to Goudsmit Magnetics - p/n: TPGC040078 type: HGR-SQ-040-FL-R-M-S coded magnetic grippers product. p/n: TPGC040078 type: HGR-SQ-040-FL-R-M-S became irreplaceable of foundations. Our company supply p/n: TPGC040078 type: HGR-SQ-040-FL-R-M-S referenced product fastest and securest on your request. Our company can make an offer even if we do not distributor of Turkey. Our established relationships with producers from all around the world and their official representatives helps us to meet your needs for spare parts, machinery, consumables and other products of the industrial field.
