Prices M4-3107-0200 Ascon Turkey

BRAND	Ascon
Product	M4-3107-0200
Description	thermostat
Internal code	OZH340003
Weight	1

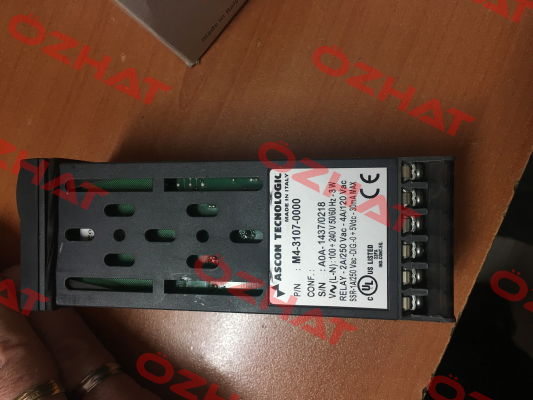

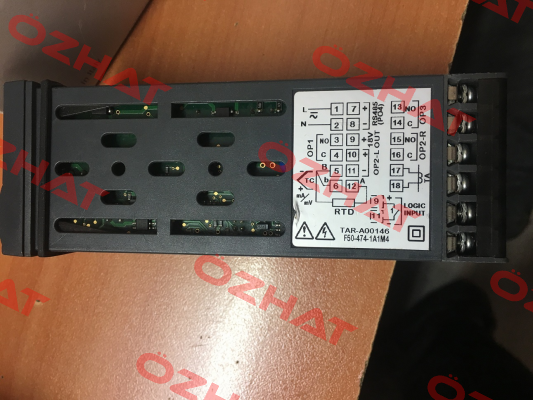

Technical specification	M4 series temperature controller (unconfigured) supply voltage: 85... 265 V~ OP1/3 output: relay (2A/250V closer) OP2 output: relay (2A/250V closer) or logic (0/5VDC, 30mA) not galvanically isolated adjustable via internal jumpers output OP4: current output 0 (4)... 20 mA 750ohm/15Vmax Galv. isolated /500V ~ /1min. Serial port: without Interface protocol: without Transmitter supply (TV): 18V You can freely configure as follows: input: PT100; thermocouple L, J, T, K, S; 0 (10)... 50 mV DC, 0 (4)... 20mA via shunt OP1 output: control or alarm output OP2 output: control or alarm output OP4 output: control output 0/4.. 20mA Rmax 750R Control: ON/OFF or PID, heating or cooling Assignment: 1 output for control and 1 output as alarm O. both outputs as an alarm

Ascon - M4-3107-0200 referenced thermostat product produced by high technology.
M4-3107-0200 became irreplaceable of foundations. We are one of the few companies which can present an offer for this product. It produced result of tests of laborotory for years. Make an offer to us for M4-3107-0200 please contact us.
