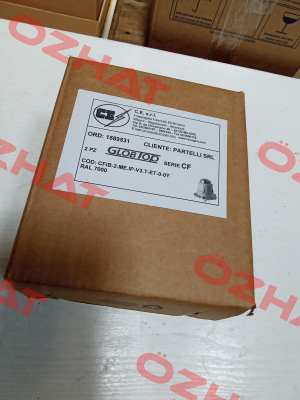

Prices  CFIB- 2- ME.IP - V3.T - ET- 0- 0Y  C.E. srl  Turkey

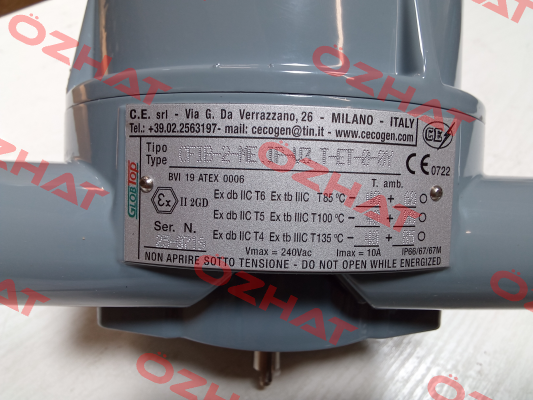

ATEX(BVI) 19 ATEX 0006):

Ex II 2 GD — Ex db IIC T6/T5/T4Ex Tb IIIC IP66/67 T85/T100/T135°C(It's also.since -40°C to +60/+80/+80°C)

- Entrance cables:No. 3 holes of M20x1,5F

- Terminal block :8 terminals plus ground connection (option 12 terminals)

- Degree of protection: IP66/67

- Treatment superficial:Chromatation (compliant All MIL5541 Class 1A) + polyester paint ( RAL7000)

( maximum resistance to chemical and atmospheric agents)

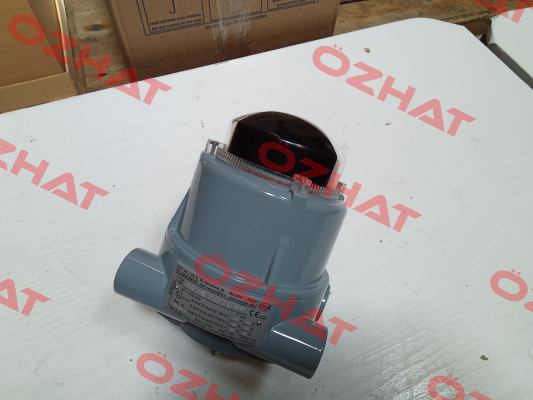

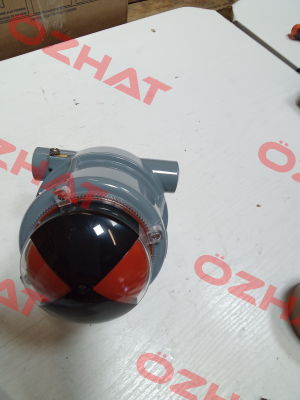

- Indicator of position:three-dimensional dome red-green color

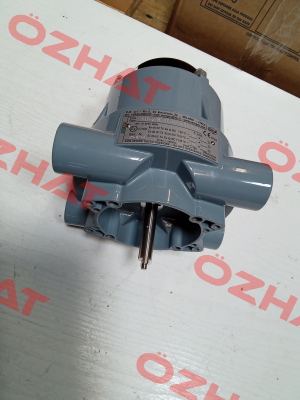

- Alberino :namur coupling — 316 stainless steel material

In each case will be mountedn. 2 mechanical limit switches and 1 transmitter 4÷20mA

unto microprocessorwith the following characteristics:

• Transmitter

- Tension power supply:10÷28.8 Vdc

- Current nominal deliverable:4÷20 mA (for maximum range of variation; see diagnostic tab.1)

- Resolution in current: ± 4 µA (0.09° out of 360°) and± 15 µA (0.09° over 90°)

- Accuracy of calibration:± 0.2% F.S.

- Linearity: ± 0.5% F.S. + potentiometer linearity

- Hysteresis:nought

- Repetitiveness:peer At the resolution of the potentiometer

- Span minimum/maximum:20° /330° assuming a maximum rotation of 360°.

- Ohmic value of potentiometer:10 kΩ

Feeding the potentiometer:2.5 Vdc (reference voltage internal to the board)

- Range of temperature: -40°C ÷ +85°C

- Coefficient of temperature: 2.5 µA/°C

- Camping(63%) of the instantaneous variation of the signal from 4 to 20mA):1.2 sec (default)

• Potentiometer

- Potentiometer of resistive type from 0 ÷ 10KΩ to conductive plastic element

(Specific model for the position transducer function)

- Linearity potentiometer:≤± 0.5% maximum

- Resolution:Practically infinite

- Power absorbed:1W at 70°C

- Temperature of work:- 40°C ÷ + 125°C

• Limit switch Mechanics

- Limit switch mindless V3 series(Crouzet) multifunction

- contact mindless(dual current):SPDT with gold-plated contact

- Flow rate contact (dc):since 1mA @ 4Vdc up to 5A @ 24Vdc - load resistive

- Flow rate contact (ac):from 1mA @ 4Vac up to 5A @ 240Vac- load resistive

- temperature Of work : See T.amb. of custody certification

- wrapping :plastic material
