Prices CAF10-G56M4 HIMMEL Turkey

BRAND	HIMMEL
Product	CAF10-G56M4

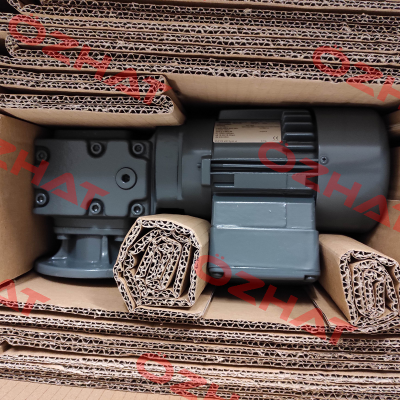

Description	worm gear motor
Internal code	OZH4296103
Weight	9
Custom code	85015100

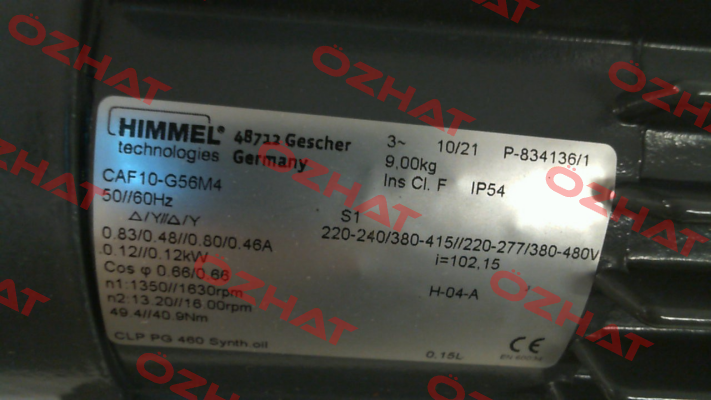

Technical specification	2010001117 Dimension sheet: CAF14 Gearbox design/Type: HIMMEL® worm gear motor/HIMMEL® -worm gear motor Transmission Type/Type: CAF10-G56M4 Dimension sheet: CAF14 Output speed/ Output speed [1/min; rpm]: 13.20//16.00 Translation/Ratio [i]: 102.15 Color/colour: RAL 7011 Iron grey/Iron grey Corrosivity category/corrosion protection: C1: i.a.A. DIN EN ISO 12944-2/HN716.21 Paint layer thickness [μm]: 60-80 Protection class: IP54 Design/mounting position: H-04-A Output torque/ Output torque [Nm]: 49.4//40.9 Direction of rotation: right/right [CW] Output shaft gearbox/ Output shaft [mm; inch]: H20x124.50 Gearbox bearing: assigned bearings Oil type: CLP PG 460 Synth.oil Oil quantity [l]: 0.15 Flange diameter/Flange diameter [mm; inch]: 120 Shaft material/Shaft material: C45 Gearbox sealing/Sealing: shaft seal ring (WDR)/shaft seal ring Label/Approval\|Identification/Certification: CE Number of poles/poles: 4 Rated frequency/ Nominal frequency [Hz]: 50//60 Rated voltage/nominal voltage [V]: 220-240/380-415//220-277/380-480 Circuit/ Wiring: S100//S100 (D/Y//D/Y) Rated power/nominal power [kW]: 0.12//0.12 Rated motor speed/Motor speed nom. [1/min; rpm]: 1350//1630 Rated current/Nominal current In [A]: 0.83/0.48//0.80/0.46 CosPHi/CosPHI: 0.66/0.66 KK location/Terminal box position: 1A KK version/Terminal box type: plastic/plastic Winding protection/Motor protector: ohne/without Motor output shaft/Output shaft [mm; inch]: V11x24.5 Sealing motor/Sealing motor: normal/normal Insulation class: F Operating mode/Duty type: S 3-75% Fan/Fan: plastic/plastic

HIMMEL - CAF10-G56M4 referenced worm gear motor product produced by high technology.
You can ask all the codes and references except CAF10-G56M4 too. Our company supply CAF10-G56M4 referenced product fastest and securest on your request. Thanks to our large disturbiton network, we offer door delivery in most suitable conditions. We present you the most competative price and delivery time on CAF10-G56M4 referenced product.

Where can I buy CAF10-G56M4 by HIMMEL in Turkey?

You can purchase CAF10-G56M4 by HIMMEL from Özhat İç ve Dış Tic. Ltd. Şti.. We serve customers across Turkey, offering competitive prices and reliable service.

What is the price of the CAF10-G56M4?

For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.

Who is the official distributor or seller of HIMMEL in Turkey?

While we are not the official distributor or seller of HIMMEL in Turkey, we source our products from reliable channels and offer you original HIMMEL equipment at competitive prices.

How can I access CAF10-G56M4 catalogs, user manuals, technical documents, and PDFs?

You can access catalogs, user manuals, and technical documents for CAF10-G56M4 on our website. Visit our resources section or contact us directly for specific documents.

Do you provide technical support for CAF10-G56M4?

While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.
